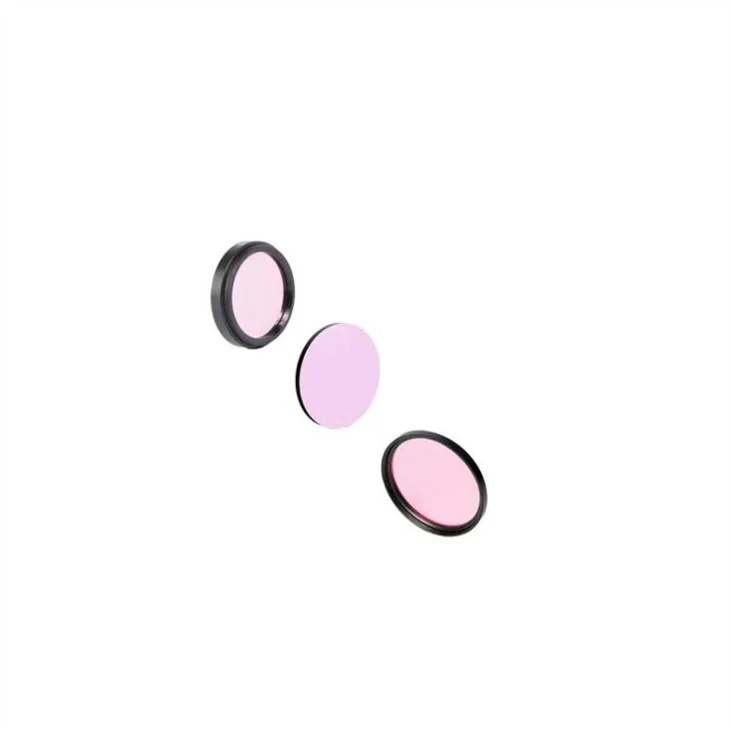

500nm Long Pass Optical Filter For Raman Spectroscopy

A 500nm long pass optical filter is a type of filter that allows light with wavelengths longer than 500nm to pass through, while blocking shorter wavelengths. This type of filter is commonly used in optical and imaging applications to remove unwanted shorter wavelengths from the transmitted or reflected light.

Our filter can help improve signal-to-noise ratio and reduce background noise, especially in fluorescence microscopy applications. It is made from high-quality materials and is designed to achieve excellent transmission efficiency, while maintaining a broad wavelength range and high optical density. Whether you are conducting research in the life sciences or industrial applications, our 500nm long pass filter will provide the precise filtering you need to produce high-quality images and reliable data.

Features

- Long pass for 500nm

- High attenuation

- Low insertion loss

- Steep rolloff curve

- Low noise

- Long-lasting performance

Parameters

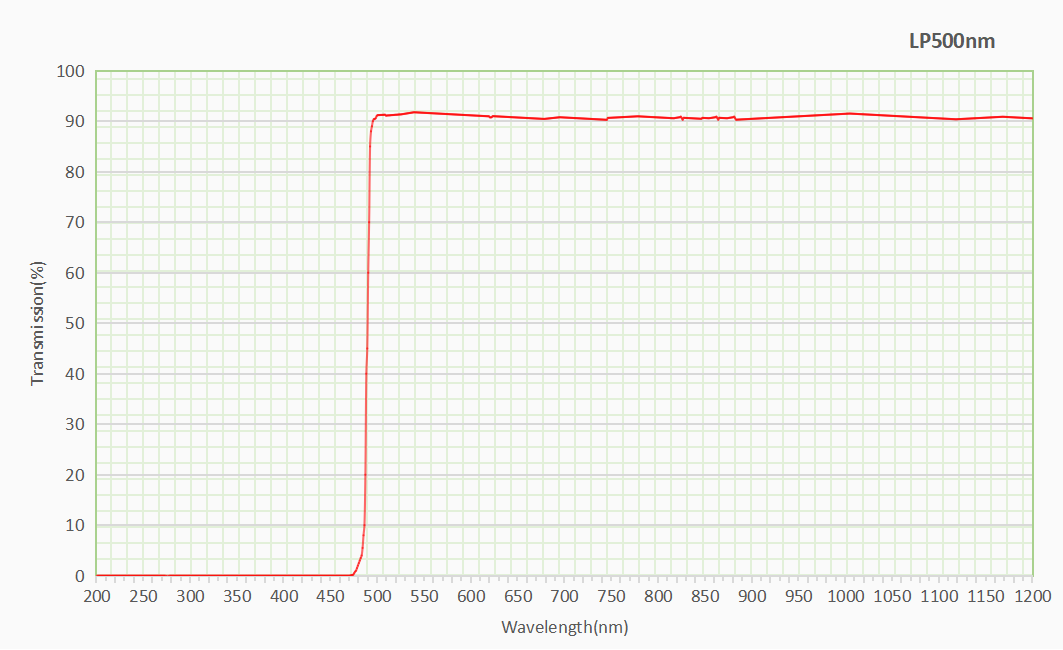

Spectrum transmission curve

Applications

The 500nm long pass filter is a versatile tool for a wide range of optical and imaging applications that require precise filtering of specific wavelengths of light. Here are the applications:

- Fluorescence microscopy

- Spectroscopy

- Photography and videography

- Chemical and biological analysis

- Medical devices

- Industrial and manufacturing

How does the 500nm long pass filter apply in Raman spectroscopy?

In Raman spectroscopy, a 500nm long pass filter can be used to selectively transmit Raman scattered light while blocking the Rayleigh scattered light. When a sample is irradiated with a laser, it scatters the light, producing a spectrum that contains both Raman and Rayleigh scattered light. The Rayleigh scattered light is at the same wavelength as the laser light, while the Raman scattered light is shifted in wavelength due to the vibrational modes of the sample molecules.

By using the filter, the Rayleigh scattered light can be removed, leaving only the Raman scattered light to be detected by the spectrometer. This allows for a more accurate and sensitive measurement of the Raman scattered light, which contains important information about the chemical composition and structure of the sample.

Additionally, it can be combined with other filters, such as a notch filter or a short pass filter, to further enhance the Raman signal and reduce background noise. Overall, the use of a 500nm long pass optical filter is an essential part of Raman spectroscopy, allowing for more precise and sensitive analysis of samples.
